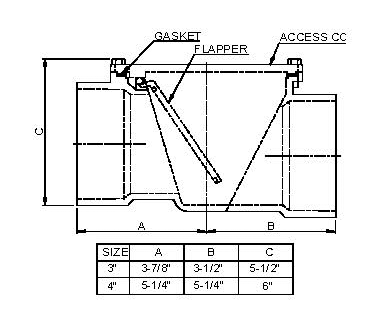

| BACKWATER VALVES |
|
|
|
|
• Prevents backflow in drainage system.
• Flapper and cover have elastometric gasket to ensure watertight seal.
• Available with plastic and cast metal access cover.
• Sockets are Schedule 40 DWV. |
|
|
|
| PVC |
|
|
| PART No. |
DESCRIPTION |
|
| PBV30 |
3" Backwater Valve |
|
| PBV40 |
4" Backwater Valve |
|
|
|
|
| ABS |
|
|
| PART No. |
DESCRIPTION |
|
| ABV30 |
3" Backwater Valve |
|
| ABV40 |
4" Backwater Valve |
|
|
| |
|
| |
|
| |
| SNAP-IN CLEANOUT |
|
|
|
|
| With Plastic Recessed Head Plug |
| • Fits Inside 4" Schedule 40 DWV Pipe. |
|
|
|
|
| PVC |
|
|
| PART No. |
DESCRIPTION |
SIZE |
| PC203 |
Snap In Cleanout |
2" x 3" |
| PC204 |
Snap In Cleanout |
3" x 4" |
| PC400 |
Snap In Cleanout |
4" |
| |
|
|
|
| |
|
| |
|
| |

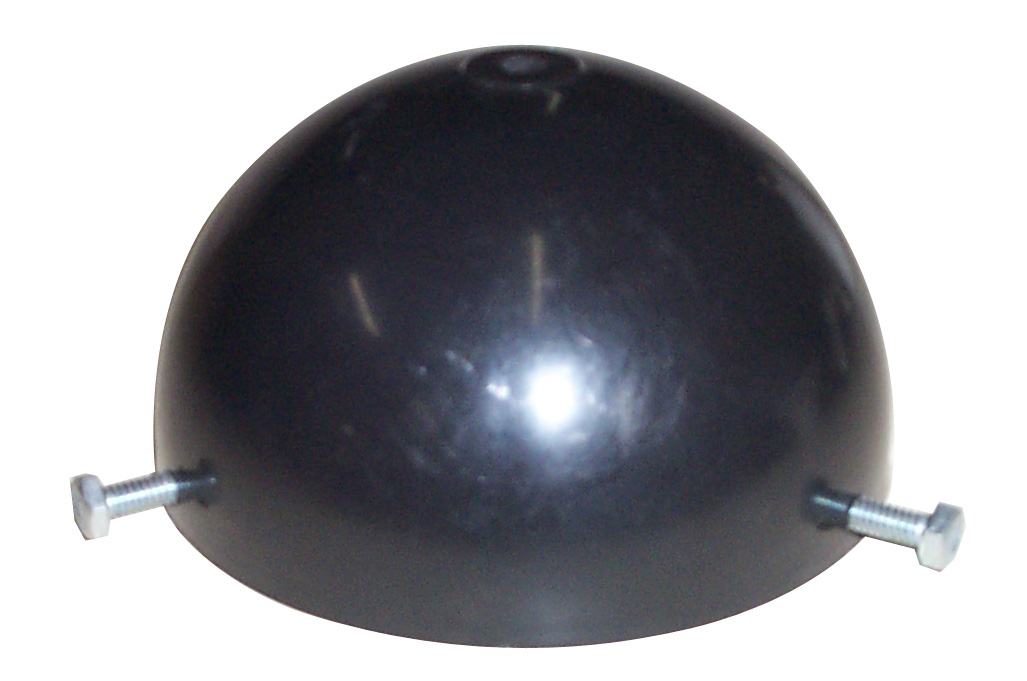

| MUSHROOM VENT CAP |
|
|
|
|
| ● Molded in size steps inside cap accommodate |
| 3" or 4" Vent pipe. |
|
| ●Cap can be locked in to position with 3 hex head bolts. |
|
|
|
| ABS |
|
|
| PART No. |
DESCRIPTION |
|
| PV400 |
4" Vent Cap |
|
|
| |
|
| |
|
| |

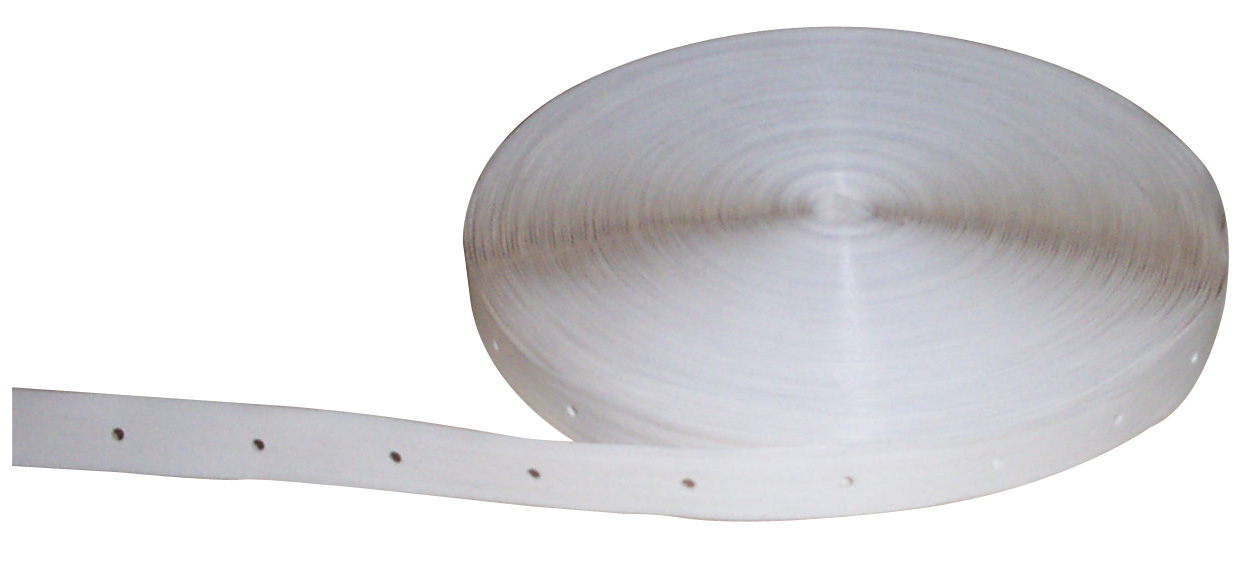

| PLASTIC HANGER STRAP |
|
|
|
|
|
|
| ● 3/4" Wide, 0.050 thick with 1/8" holes spaced 1-1/2" |
| ● Tensile Strength 80 lbs. |
|
|
|
|
|
|
| PART No. |
DESCRIPTION |
SIZE |
|
| PH-25 |
Plastic Hanger Strap |
25' |
|
| PH-50 |
Plastic Hanger Strap |
50' |
|
| PH-100 |
Plastic Hanger Strap |
100' |
|
|
| |
|
| |
|
| |

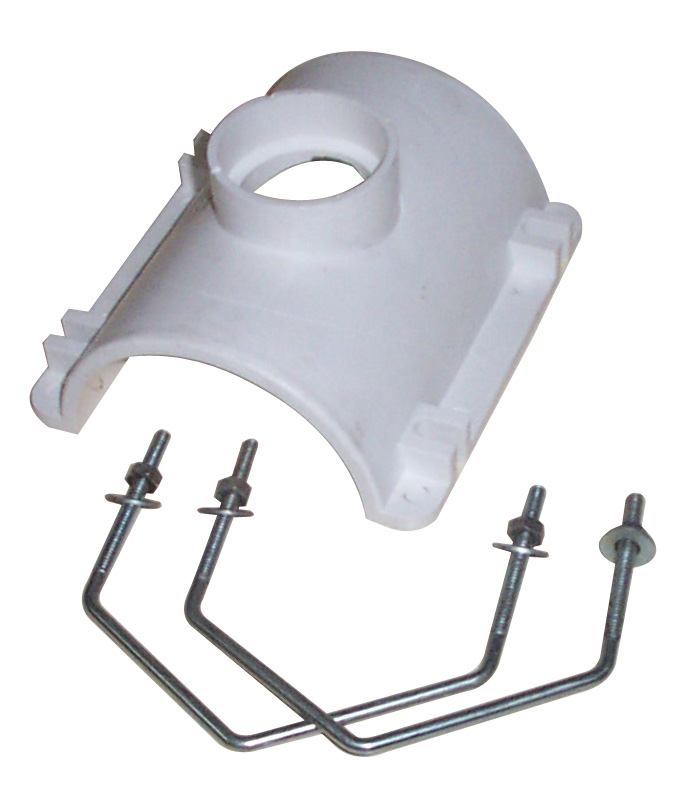

| SADDLE TEE KITS |
|
|
| ● Solvent weld pipe. |
| ● Includes V-bolts, nuts and washers. |
| ● Individually poly bagged. |
|
|
| PVC |
|
| PART No. |
DESCRIPTION |
| PS415 |
4" x 1-1/2" Saddle Tee |
| PS402 |
4" x 2" Saddle Tee |
| PS403 |
4" x 3" Saddle Tee |
| PS404 |
4" x 4" Saddle Tee |
|
|
| ABS |
|
| PART No. |
DESCRIPTION |
| AS415 |
4" x 1-1/2" Saddle Tee |
| AS402 |
4" x 2" Saddle Tee |
| AS403 |
4" x 3" Saddle Tee |
| AS404 |
4" x 4" Saddle Tee |
|
| |
|
| |
|
| |

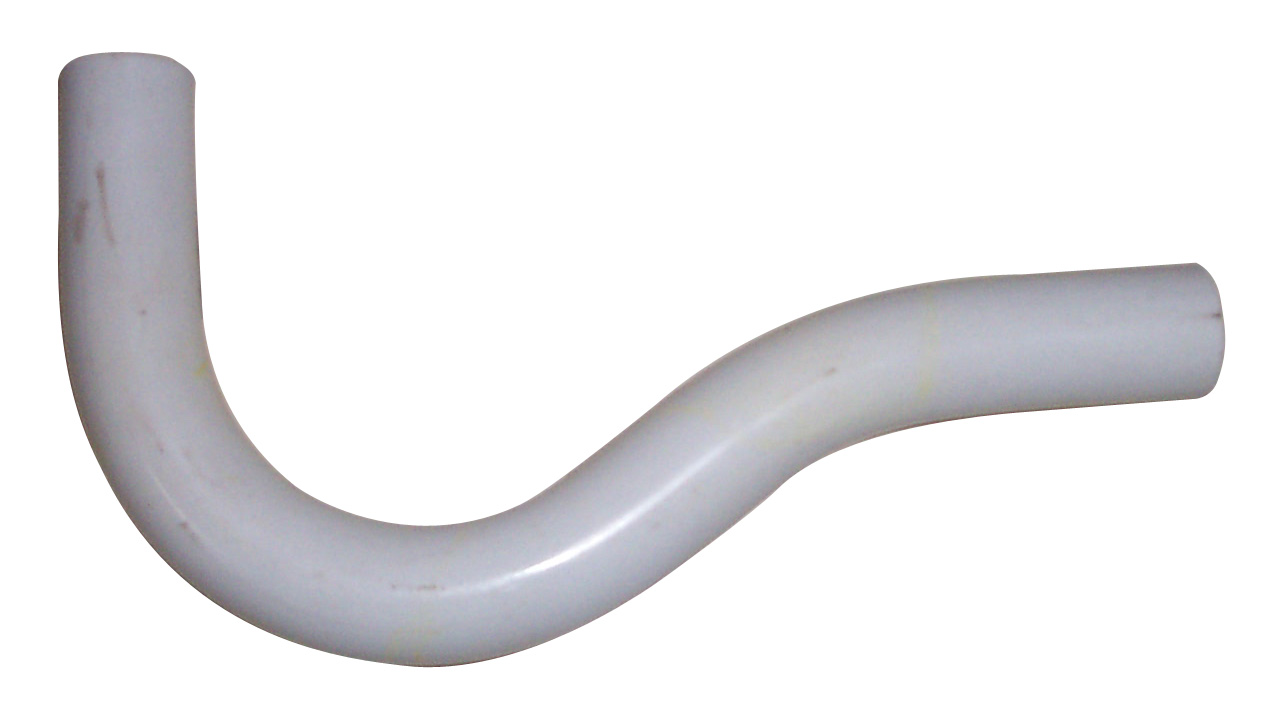

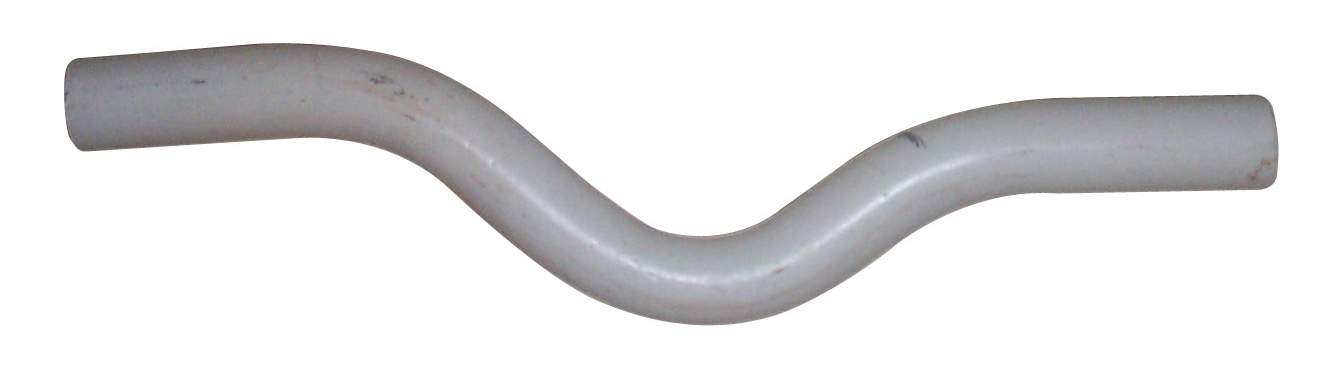

| P TRAPS / RUNNING TRAP |
|
|
|
|
| ● Smooth flowing one - piece PVC schedule |
| 40 DWV pipe |
|
| ● Eliminates the need for makeshift traps. |
|
|
|
|
| PVC |
|
|
| PART No. |
DESCRIPTION |
|
| PB-1 |
3/4" P-Trap |
|
| PB-2 |
3/4" Running Trap |
|
|
| |
|
| |
|
| |

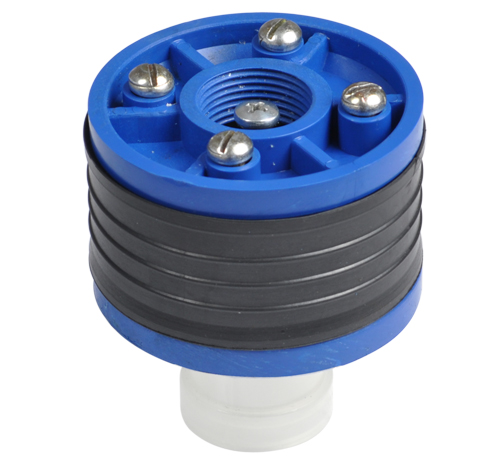

| BACKFLOW PREVENTOR |
|
• Protects against basement flooding
• Used where there is an absence of backflow device
• Fits spigot end of pipe
• Threaded model made for 1-1/2? IPS standpipe
• Quick and easy to install
• Universal model uses standpipe and provides
• additional protection with a float as back-up |
|
|
|
|
| PART No. |
DESCRIPTION |
|
| BF4 |
4" FS-S Floodstopper – tapped 1-1/2" |
|
| BF4U |
4" FS-U Floodstopper – w/float, tapped 1-1/2" |
|
| BF3U |
3" FS-U Floodstopper – w/float, tapped 3/4" |
|
|
| |
|
| |
