| 4" HUB FITS BASE WITH 3-1/2" SPUDS |
| Fits inside 4" Schedule 40 DWV Fitting |
| * PB, NB and CP Strainers are 3/16" thick |
| * Adjustable (see dimensions C) |
|
| * Supplied with 3" IPS (3-1/2" OD) countersunk plug |
|
|
|
|

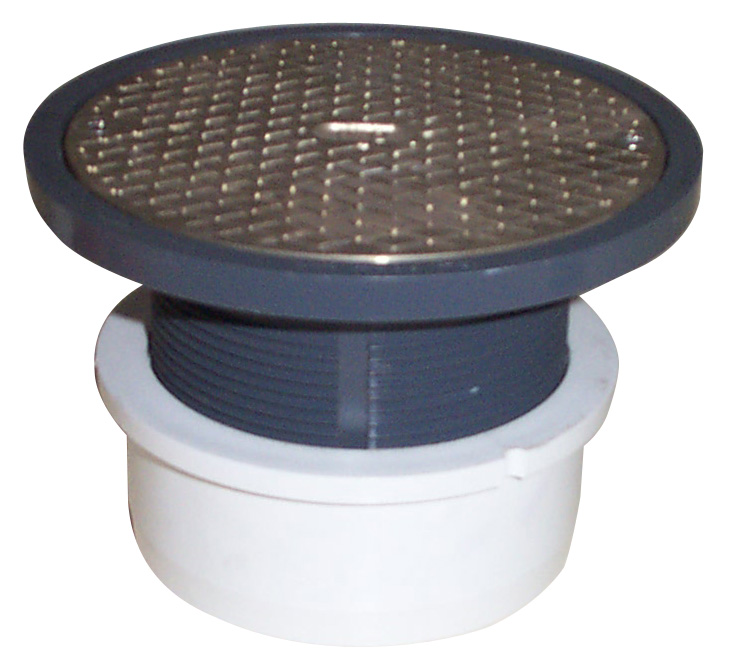

| 3-1/2" IPS Plastic Spuds with 6" Round Covers |
| PVC |
ABS |
COVER |
|
| PC600 |
AC600 |
6" PB |
|
| PC601 |
AC601 |
6" PB with ring |
|
| PC602 |
AC602 |
6" NB |
|
| PC603 |
AC603 |
6" NB with ring |
|
|
| |
|
| |
|
| |

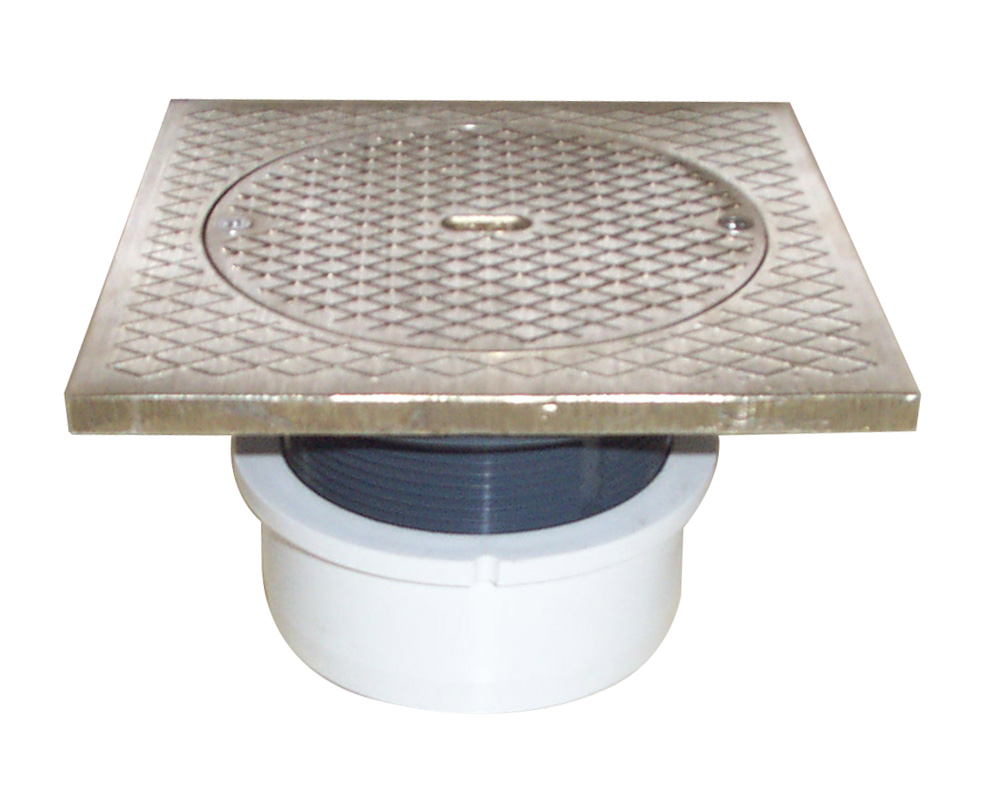

| 3-1/2" IPS Plastic Spuds with 7" Square Meter Ring |
| PVC |
ABS |
STRAINER |
|
| PC604 |
AC604 |
5" PB |
|
| PC605 |
AC605 |
5" NB |
|
|
| |
|
| |
|
| |
| 3-1/2" IPS Metal Spuds with 5" Round Covers |
| PVC |
ABS |
COVER |
|
| PC606 |
AC606 |
5" NB |
|
| PC607 |
AC607 |
5" PB |
|
|
| |
|
| |
|
| |
| CLEANOUT DIMENSIONS |
|
|
| |
A |
B |
C |
| Without ring |
Inside 4" Pipe |
6-1/8" |
3-7/8" to 4-5/8" |
| With ring |
Inside 4" Pipe |
6-1/2" |
4" to 4-3/4" |
| Square |
Inside 4" Pipe |
7" |
4" to 4-7/8" |
| Metal Spud |
Inside 4" Pipe |
5" |
2-7/16" to 3-1/2" |
|
| |
|
| |
|
| |
| 3" x 4" PIPE FITS BASE WITH 3-1/2" SPUDS |
| Fits Over 3" or Inside 4" Schedule 40 DWV Fitting |
| * PB, NB and CP Strainers are 3/16" thick |
| * Adjustable (see dimensions C) |
|
| * Supplied with 3" IPS (3-1/2" OD) countersunk plug |
|
|
|
|
| 3-1/2" IPS Plastic Spuds with 6" Round Covers |
| PVC |
ABS |
STRAINER |
|
| PC609 |
AC609 |
6" PB |
|
| PC610 |
AC610 |
6" PB with Ring |
|
| PC611 |
AC611 |
6" NB |
|
| PC612 |
AC612 |
6" NB with Ring |
|
|
| |
|
| |
|
| |

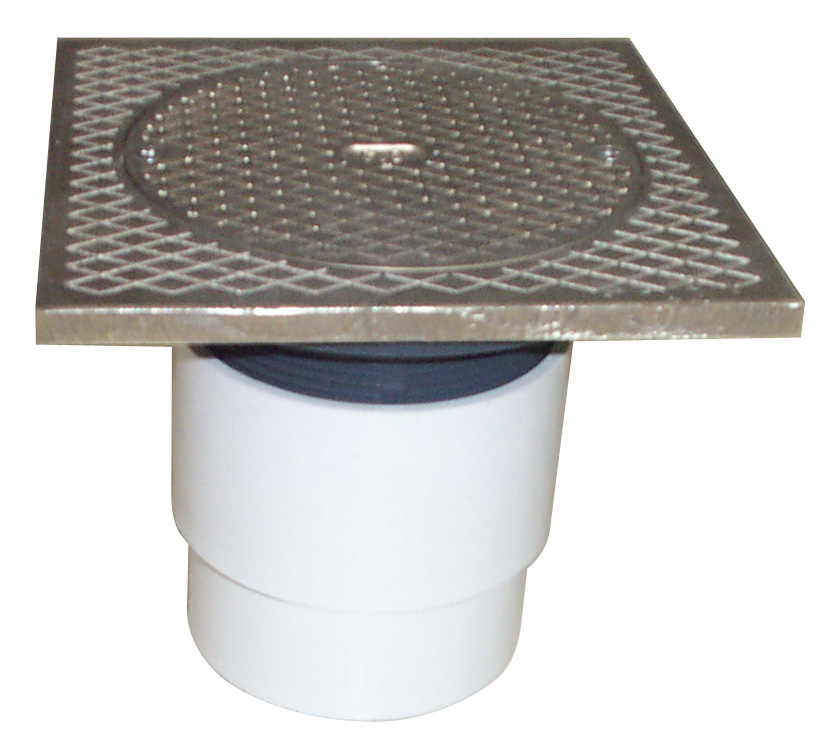

| 3-1/2" IPS Plastic Spuds with |
|
| 7" Square Top and 5" Round Covers |
| PVC |
ABS |
STRAINER |
|
| PC613 |
AC613 |
5" PB |
|
| PC614 |
AC614 |
5" NB |
|
|
| |
|
| |
|
| |
| DRAIN DIMENSIONS |
|
|
|
|
| |
A |
B |
C |
D |
E |
| 6" Round with Ring |
Over 3" Pipe |
Inside 4" Pipe |
2-1/2" to 3-3/4" |
4-1/8" |
6-1/2" |
| 6" Round |
Over 3" Pipe |
Inside 4" Pipe |
2-3/4" to 4" |
4-1/8" |
6-1/8" |
| 7" Square |
Over 3" Pipe |
Inside 4" Pipe |
2-1/2" to 3-3/4" |
4-1/8" |
7" |
|
| |
|
| |
