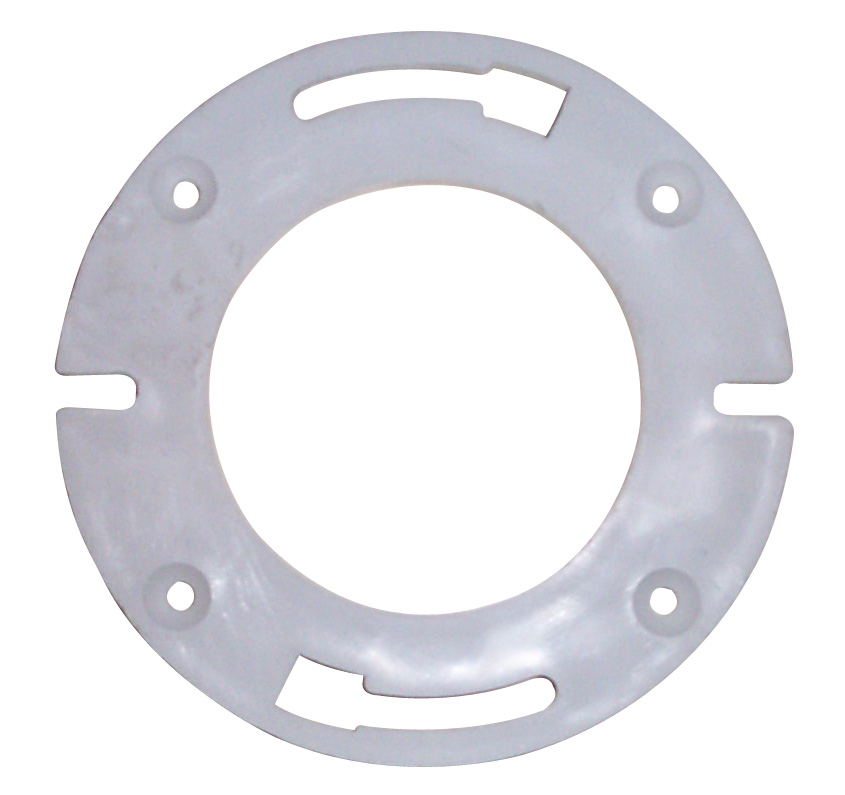

| CLOSET FLANGE RING |
|
|
|
|
| ● Provides a quick flange installation on concrete slabs |
| without chipping concrete or other advance preparation. |
|
|
|
| PVC |
|
|
| PART No. |
DESCRIPTION |
|
| PF400 |
4" Closet Flange |
|
|
|
|
| ABS |
|
|
| PART No. |
DESCRIPTION |
|
| AF400 |
4" Closet Flange |
|
|
| |
|
| |
|
| |

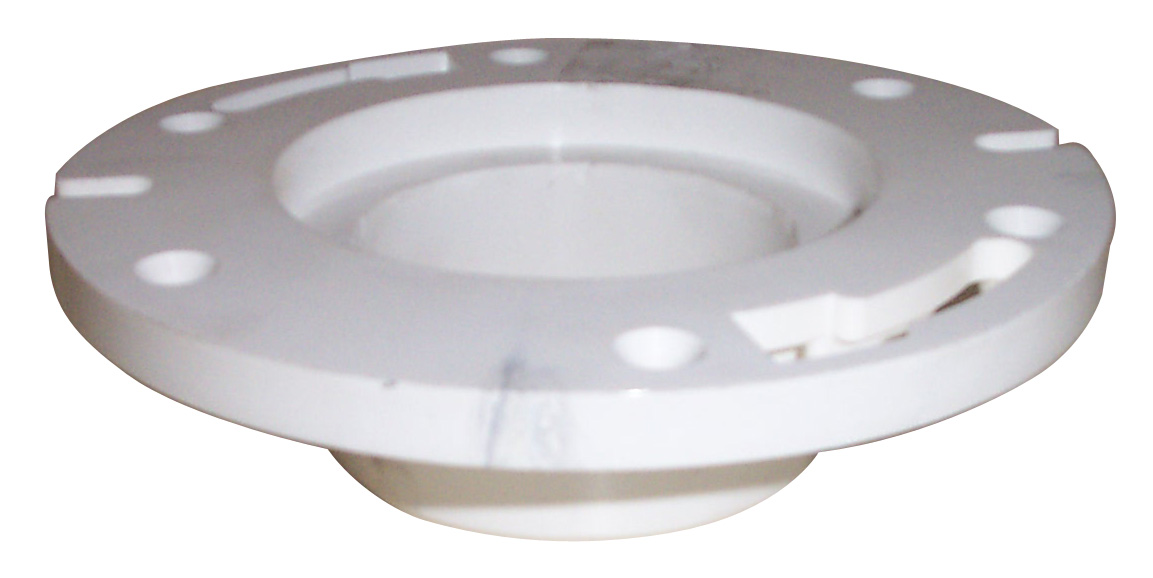

| FLUSH FIT CLOSET FLANGE |
|
|
|
|
| ● Mounting slots on four sides of flange to allow |
|
| precise alignment of water closet. |
|
| ● Pipe may be cut flush fit with floor. |
|
| ● Four countersunk holes for secure attachment to floor. |
|
|
|
| PVC |
|
|
| PART No. |
DESCRIPTION |
|
| PF401 |
3"x4" Flush fit clo. Flange w/o test cap |
|
| PF402 |
3"x4" Flush fit clo. Flange w/ test cap |
|
|
|
|
| ABS |
|
|
| PART No. |
DESCRIPTION |
|
| AF401 |
3"x4" Flush fit clo. Flange w/o test cap |
|
| AF402 |
3"x4" Flush fit clo. Flange w/ test cap |
|
|
| |
|
| |
|
| |

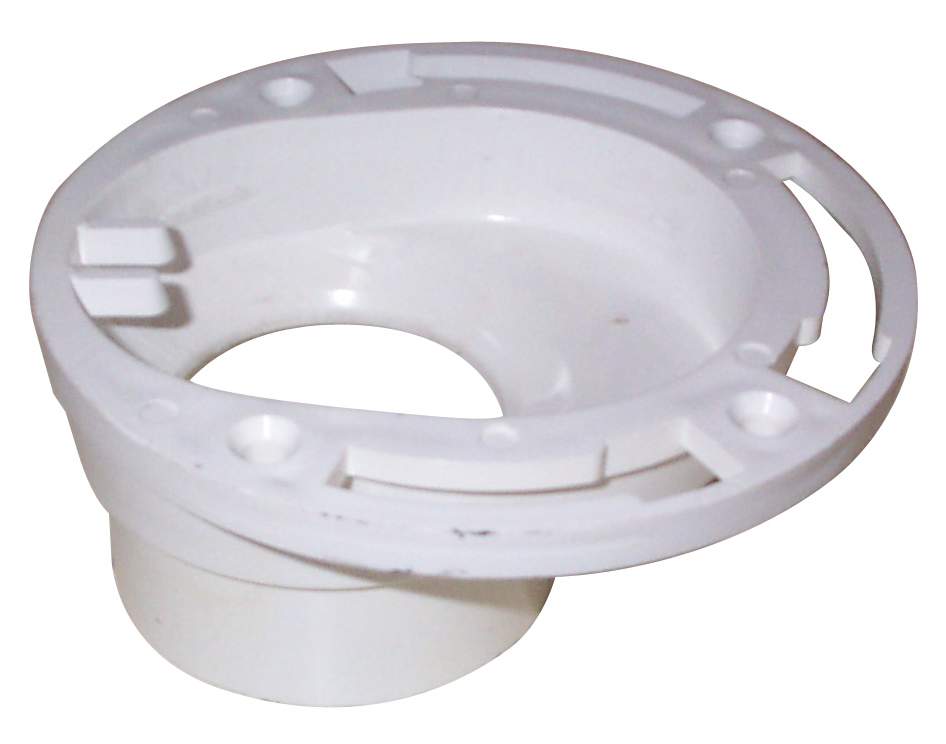

| OFFSET CLOSET FLANGE |
|
|
|
|
| ● Allows up to a 2" margin of error in roughing in a |
| commode. |
|
| ● Fits over 3" or inside 4" pipe. |
|
|
|
|
| PVC |
|
|
| PART No. |
DESCRIPTION |
|
| PF403 |
2" Offset Flange Only |
|
|
|
|
| ABS |
|
|
| PART No. |
DESCRIPTION |
|
| AF403 |
2" Offset Flange Only |
|
|
| |
|
| |
|
| |
| 3" INSIDE FIT CLOSET FLANGE |
|
|
|
|
| ● Fits inside 3" Schedule 40 DWV pipe only. |
| ● Mounting slots on four sides of flange to allow precise |
| alignment of water closet. |
|
| ● Four countersunk holes for secure attachment to floor. |
|
|
|
| PVC |
|
|
| PART No. |
DESCRIPTION |
|
| PF404 |
3" Inside fit clo. Flange w/o test cap |
|
| PF405 |
3" Inside fit clo. Flange w/ test cap |
|
|
|
|
| ABS |
|
|
| PART No. |
DESCRIPTION |
|
| AF404 |
3" Inside fit clo. Flange w/o test cap |
|
| AF405 |
3" Inside fit clo. Flange w/ test cap |
|
|
| |
|
| |
|
| |

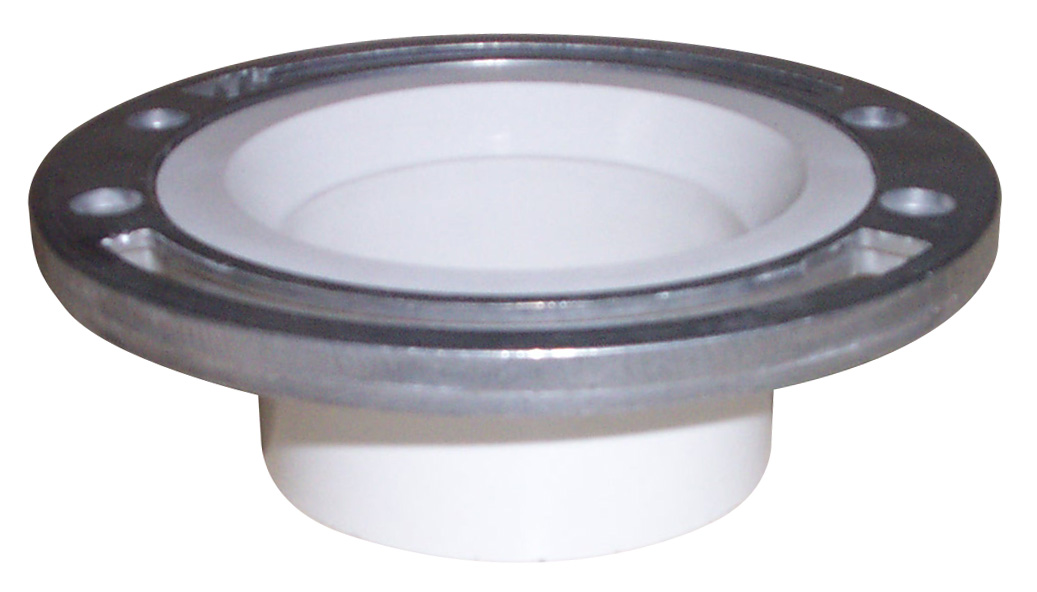

| ADJUSTABLE RING CLOSET FLANGE |
|
|
|
| ● Cast aluminum ring available which will not rust. |
| ● Ring is 360o adjustable. |
|
| ● Strong and durable flange. |
|
| ● Flange is designed so that ring will not pop off |
| when tightening closet bolts during installation. |
|
|
|
| PVC |
|
|
| PART No. |
DESCRIPTION |
|
| PF406 |
3"x4" Adj. Ring Closet Flange w/o Test Cap |
|
| PF407 |
3"x4" Adj. Ring Closet Flange w/ Test Cap |
|
|
|
|
| ABS |
|
|
| PART No. |
DESCRIPTION |
|
| AF406 |
3"x4" Adj. Ring Closet Flange w/o Test Cap |
|
| AF407 |
3"x4" Adj. Ring Closet Flange w/ Test Cap |
|
|
| |
|
| |
|
| |

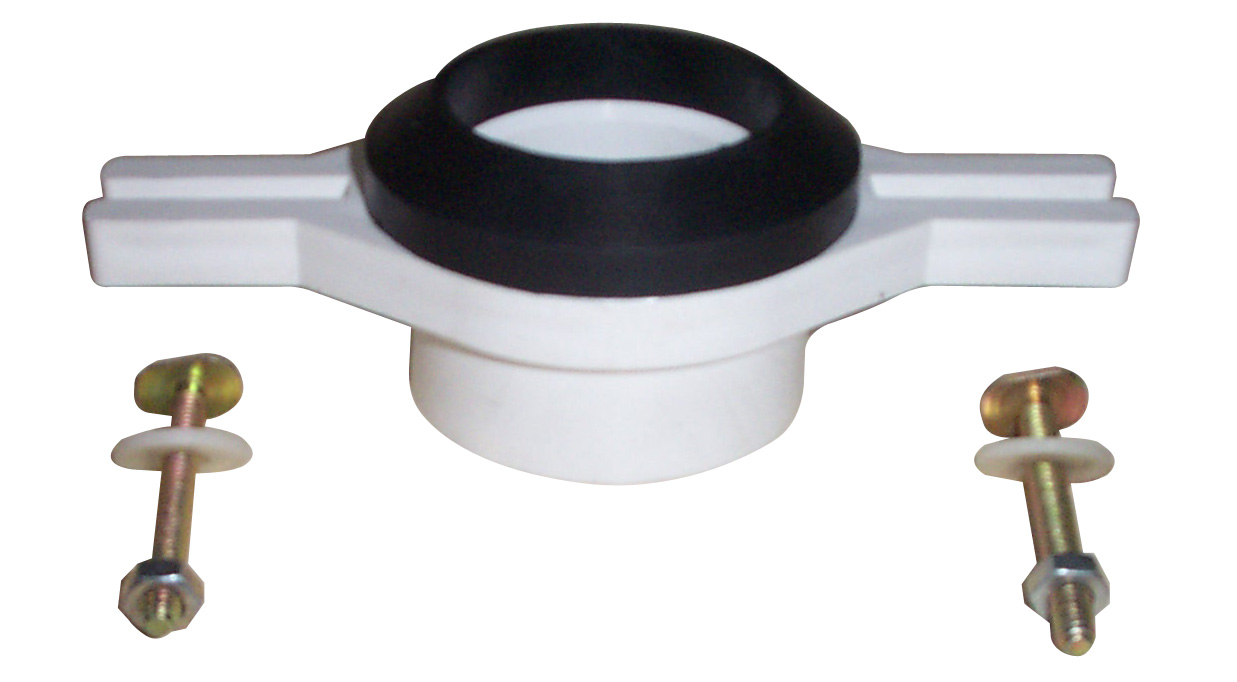

| ADJUSTABLE URINAL FLANGE |
|
|
|
|
| ● Horizontal slots accommodate urinal with 4" to 6" |
| flange mount centers. |
|
| ● Fits over 2" Schedule 40 DWV pipe. |
|
|
|
|
|
|
|
| PVC |
|
|
| PART No. |
DESCRIPTION |
|
| PF408 |
2" Solvent Weld Urinal Flange |
|
|
|
|
| ABS |
|
|
| PART No. |
DESCRIPTION |
|
| AF408 |
2" Solvent Weld Urinal Flange |
|
|
| |
|
| |
|
| |

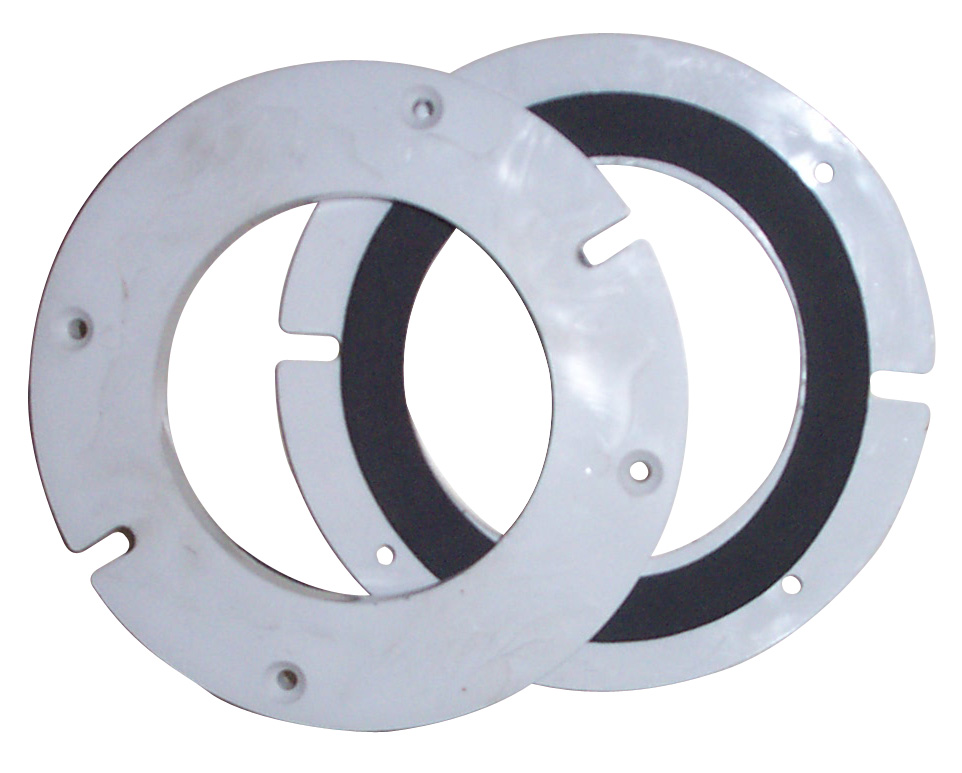

| CLOSET FLANGE EXTENSION KIT |
|
|
|
| ● 1/2" Thick & 1/4" Thick |
|
|
|
|
| PVC |
|
|
| PART No. |
DESCRIPTION |
|
| PF409 |
Closet Flange |
|
| Extension Kit |
|
| |
|
| |
