Assembled Coverall Drainss


2" HEAVY DUTY DRAIN BASE WITH 3-1/2" SPUDS
Fits Over 2" Schedule 40 DWV Pipe
* PB and NB Strainers are 3/16" thick
* Adjustable ( see dimensions D )

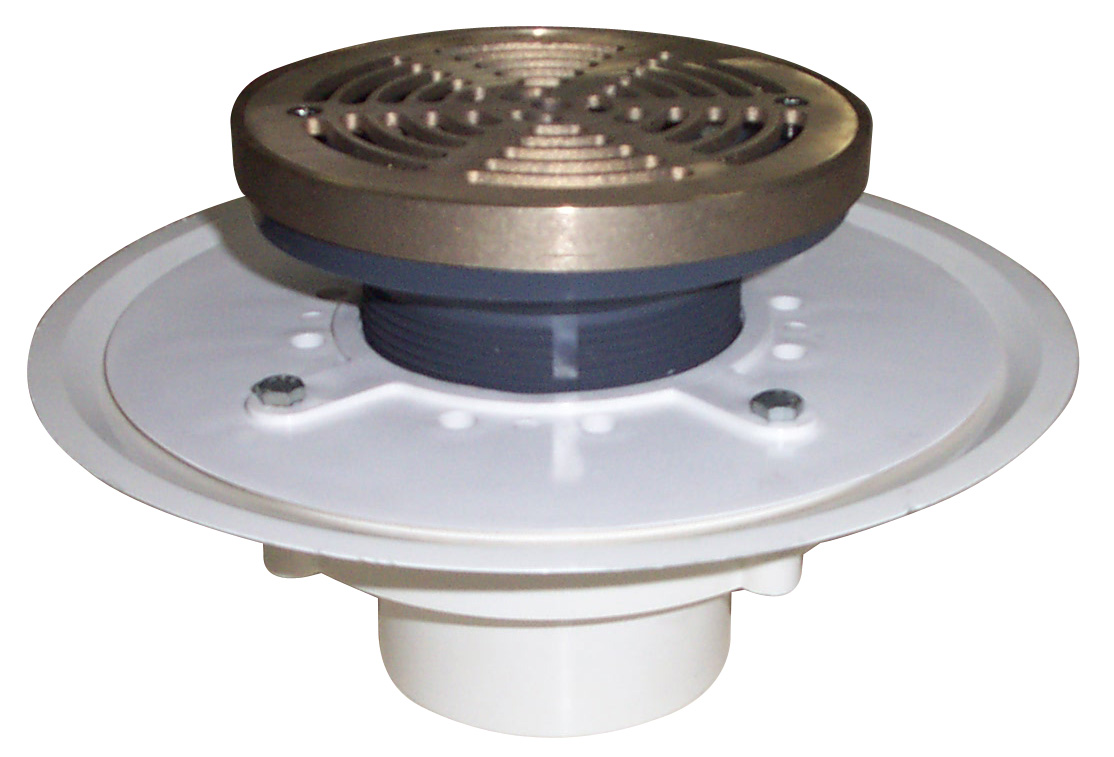

3-1/2" IPS Plastic Spuds with 6" Round Strainers
PVC ABS STRAINER
PD410 AD410 6" PB
PD411 AD411 6" PB with ring
PD412 AD412 6" NB
PD413 AD413 6" NB with ring

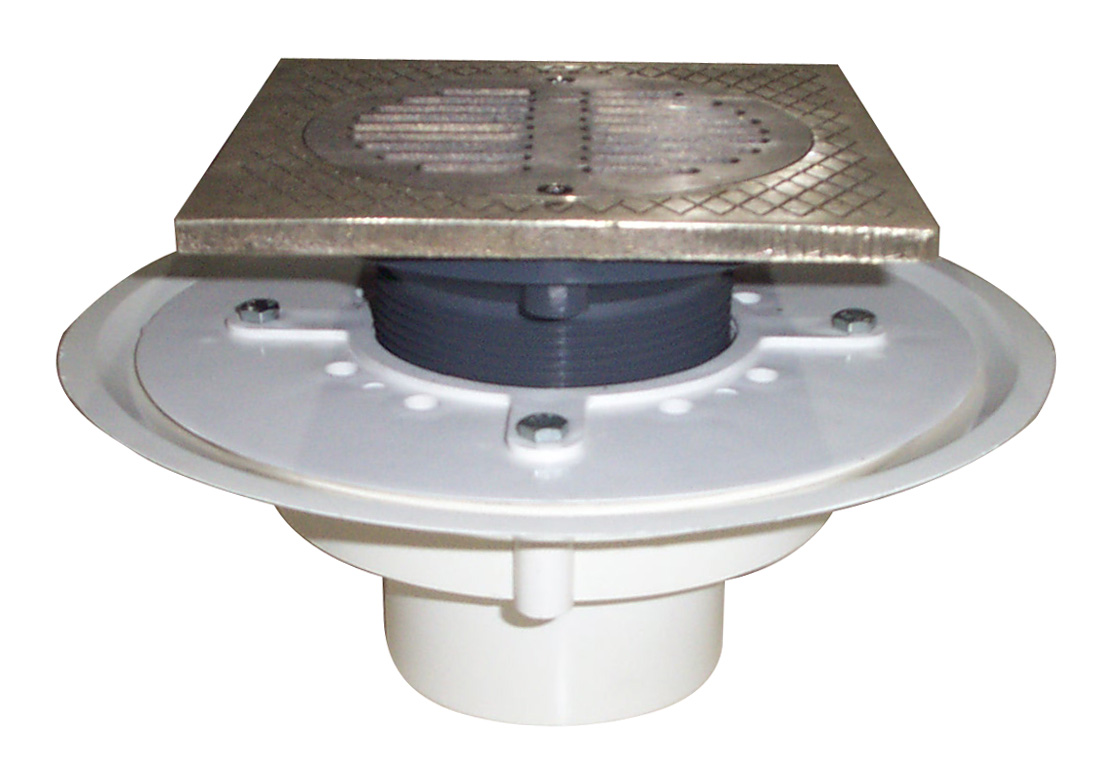

3-1/2" IPS Plastic Spuds with
7" Square Tops and 5" Round Strainers
PVC ABS STRAINER
PD414 AD414 5" PB
PD415 AD415 5" NB



DRAIN DIMENSIONS
  A B C D
Without ring 2" Pipe Fit 6-1/8" 11" 4-3/8" to 6"
With ring 2" Pipe Fit 6-1/2" 11" 4-1/2" to 6-1/8"
Square Top 2" Pipe Fit 7" 11" 5-1/4" to 6-3/4"



2" HEAVY DUTY DRAIN BASE WITH 3-1/2" SPUDS
Fits Over 2" Schedule 40 DWV Pipe
* PB and NB Strainers are 3/16" thick
* Adjustable ( see dimensions D )

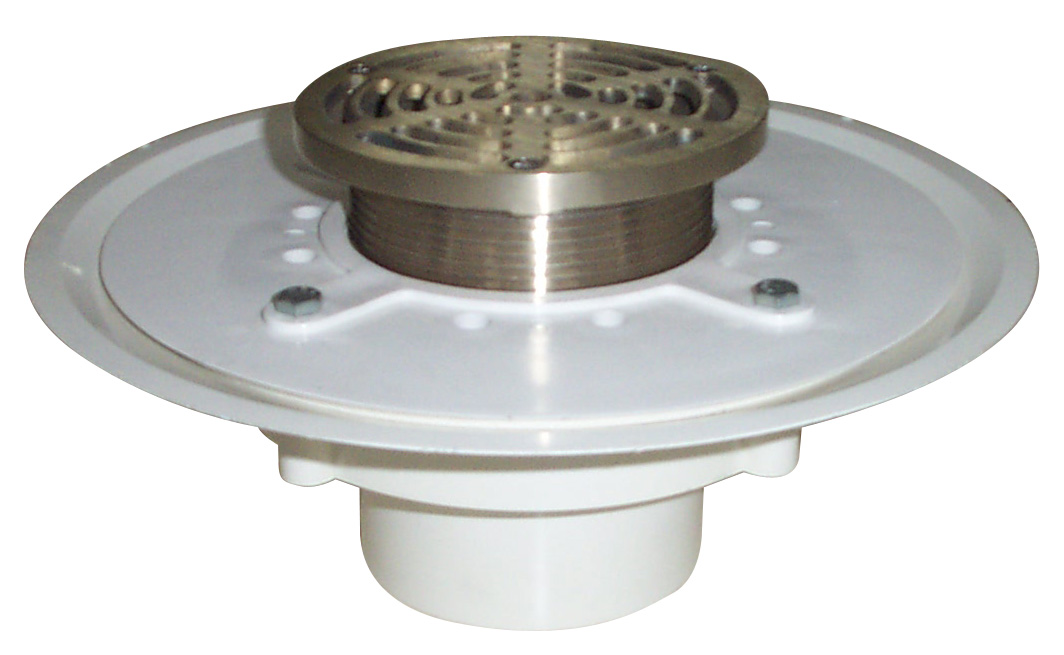

3-1/2" IPS Metal Spuds with 5" or 6" Round Strainers
PVC ABS STRAINER
PD416 AD416 5" PB
PD417 AD417 5" NB
PD418 AD418 6" PB
PD419 AD419 6" NB

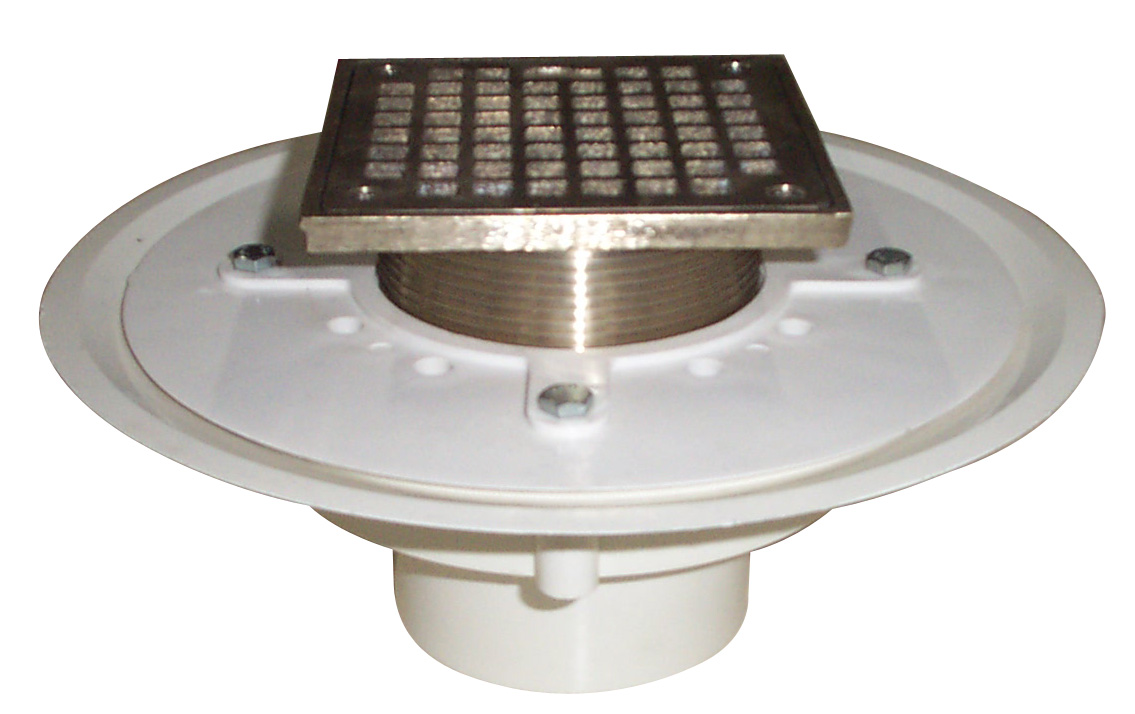

3-1/2" IPS Metal Spuds with 5" Square Strainers
PVC ABS STRAINER
PD420 AD420 5" PB
PD421 AD421 5" NB


DRAIN DIMENSIONS
  A B C D
5" Round 2" Pipe Fit 5" 11" 5-1/4" to 5-3/4"
6" Round 2" Pipe Fit 6-1/4" 11" 5" to 6"
5" Square 2" Pipe Fit 5" 11" 4-3/4" to 5-3/4"




3" HEAVY DUTY DRAIN BASE WITH 3-1/2" SPUDS
Fits Over 3" Schedule 40 DWV Pipe
* PB and NB Strainers are 3/16" thick
* Adjustable ( see dimensions D )
3-1/2" IPS Plastic Spuds with 6" Round Strainers
PVC ABS STRAINER
PD422 AD422 6" PB
PD423 AD423 6" PB with ring
PD424 AD424 6" NB
PD425 AD425 6" NB with ring



3-1/2" IPS Plastic Spuds with
7" Square Tops and 5" Round Strainers
PVC ABS STRAINER
PD426 AD426 5" PB
PD427 AD427 5" NB



DRAIN DIMENSIONS
  A B C D
Without ring 3" Pipe Fit 6-1/8" 11" 4-3/8" to 6"
With ring 3" Pipe Fit 6-1/2" 11" 4-1/2" to 6-1/8"
Square Top 3" Pipe Fit 7" 11" 5-1/4" to 6-3/4"



3" HEAVY DUTY DRAIN BASE WITH 3-1/2" SPUDS
Fits Over 3" Schedule 40 DWV Pipe
* PB and NB Strainers are 3/16" thick
* Adjustable ( see dimensions D )
3-1/2" IPS Metal Spuds with 5" or 6" Round Strainers
PVC ABS STRAINER
PD428 AD428 5" PB
PD429 AD429 5" NB
PD430 AD430 6" PB
PD431 AD431 6" NB



3-1/2" IPS Metal Spuds with 5" Square Strainers
PVC ABS STRAINER
PD432 AD432 5" PB
PD433 AD433 5" NB



DRAIN DIMENSIONS
  A B C D
5" Round 3" Pipe Fit 5" 11" 5-1/4" to 5-3/4"
6" Round 3" Pipe Fit 6-1/4" 11" 5" to 6"
5" Square 3" Pipe Fit 5" 11" 4-3/4" to 5-3/4"



4" HEAVY DUTY DRAIN BASE WITH 3-1/2" SPUDS
Fits Over 4" Schedule 40 DWV Pipe
* PB and NB Strainers are 3/16" thick
* Adjustable ( see dimensions D )
3-1/2" IPS Plastic Spuds with 6" Round Strainers
PVC ABS STRAINER
PD434 AD434 6" PB
PD435 AD435 6" PB with ring
PD436 AD436 6" NB
PD437 AD437 6" NB with ring



3-1/2" IPS Plastic Spuds with
7" Square Tops and 5" Round Strainers
PVC ABS STRAINER
PD438 AD438 5" PB
PD439 AD439 5" NB



DRAIN DIMENSIONS
  A B C D
Without ring 4" Pipe Fit 6-1/8" 11" 4-3/8" to 6"
With ring 4" Pipe Fit 6-1/2" 11" 4-1/2" to 6-1/8"
Square Top 4" Pipe Fit 7" 11" 5-1/4" to 6-3/4"



4" HEAVY DUTY DRAIN BASE WITH 3-1/2" SPUDS
Fits Over 4" Schedule 40 DWV Pipe
* PB and NB Strainers are 3/16" thick
* Adjustable ( see dimensions D )
3-1/2" IPS Metal Spuds with 5" or 6" Round Strainers
PVC ABS STRAINER
PD440 AD440 5" PB
PD441 AD441 5" NB
PD442 AD442 6" PB
PD443 AD443 6" NB



3-1/2" IPS Metal Spuds with 5" Square Strainers
PVC ABS STRAINER
PD444 AD444 5" PB
PD445 AD445 5" NB



DRAIN DIMENSIONS
  A B C D
5" Round 4" Pipe Fit 5" 11" 5-1/4" to 5-3/4"
6" Round 4" Pipe Fit 6-1/4" 11" 5" to 6"
5" Square 4" Pipe Fit 5" 11" 4-3/4" to 5-3/4"



4" HUB FITS BASE WITH 3-1/2" SPUDS
Fits inside 4" Schedule 40 DWV Fitting
* PB and NB Strainers are 3/16" thick
* Adjustable (see dimensions C)
3-1/2" IPS Plastic Spuds with 6" Round Strainers
PVC ABS STRAINER
PD600 AD600 6" PB
PD601 AD601 6" PB with ring
PD602 AD602 6" NB
PD603 AD603 6" NB with ring

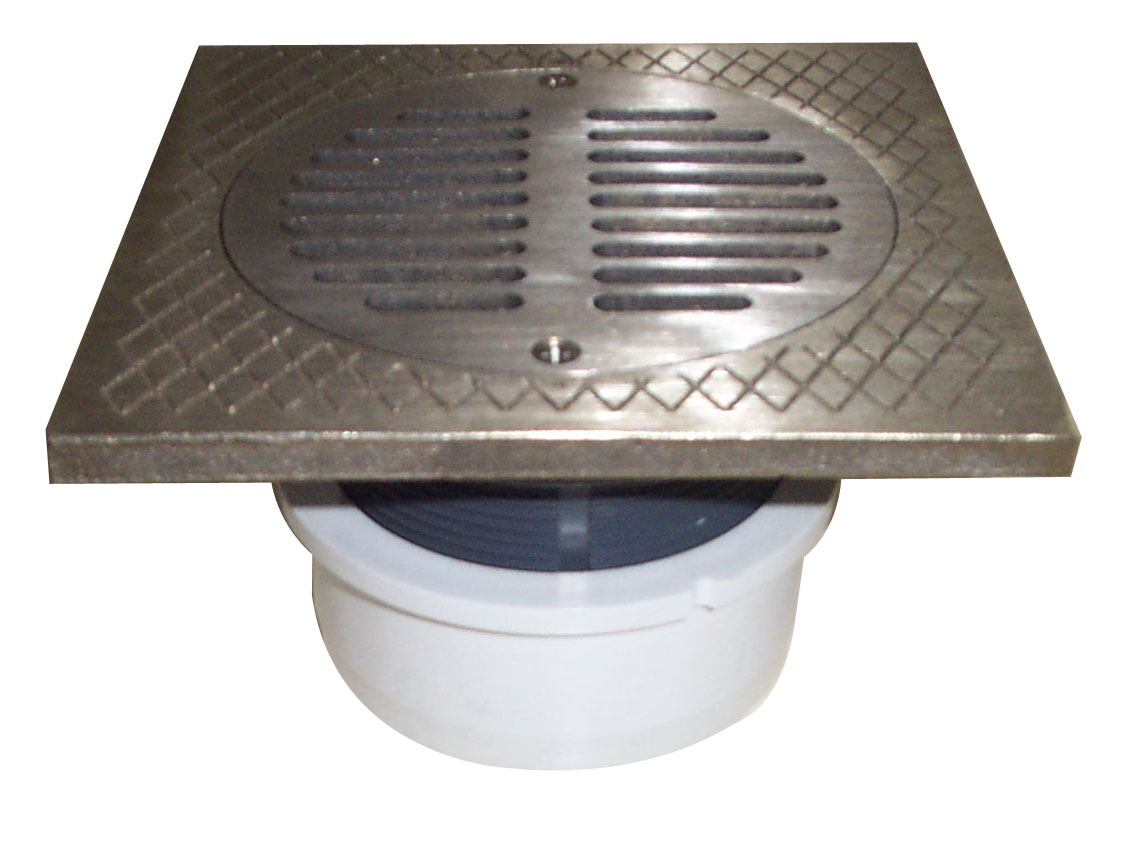

3-1/2" IPS Plastic Spuds with
7" Square Tops and 5" Round Strainers
PVC ABS STRAINER
PD604 AD604 5" PB
PD605 AD605 5" NB



DRAIN DIMENSIONS
  A B C
Without ring 4" Hub Fit 6-1/8" 3" to 4-1/2"
With ring 4" Hub Fit 6-1/2" 3-1/8" to 4-5/8"
Square 4" Hub Fit 7" 3-5/32" to 4-7/8"



4" HUB FITS BASE WITH 3-1/2" SPUDS
Fits inside 4" Schedule 40 DWV Fitting
* PB, NB and CP Strainers are 3/16" thick
* Adjustable (see dimensions C)
3-1/2" IPS Metal Spuds with 5"or 6" Round Strainers
PVC ABS STRAINER
PD606 AD606 5" PB
PD607 AD607 5" NB
PD608 AD608 5" CP
PD609 AD609 6" PB
PD610 AD610 6" NB
PD611 AD611 6" CP



3-1/2" IPS Metal Spuds with 5" Square Strainers
PVC ABS STRAINER
PD612 AD612 5" PB
PD613 AD613 5" NB



DRAIN DIMENSIONS
  A B C
5" Round 4" Hub Fit 5" 2-1/2" to 3-3/4"
6" Round 4" Hub Fit 6-1/8" 2-3/4" to 4"
5" Square 4" Hub Fit 5" 2-1/2" to 3-3/4"



3" x 4" PIPE FITS BASE WITH 3-1/2" SPUDS
Fits Over 3" or Inside 4"  Schedule 40 DWV Fitting
* PB, NB and CP Strainers are 3/16" thick
* Adjustable (see dimensions C)
3-1/2" IPS Metal Spuds with 5" or 6" Round Strainers
PVC ABS STRAINER
PD614 AD614 5" PB
PD615 AD615 5" NB
PD616 AD616 6" PB
PD617 AD617 6" NB



3-1/2" IPS Metal Spuds with 5" Square Strainers
PVC ABS STRAINER
PD618 AD618 5" PB
PD619 AD619 5" NB



DRAIN DIMENSIONS
  A B C D
5" Round  Over 3" Pipe Inside 4" Pipe 4-1/2" to 5-3/4" 4-1/8"
6" Round Over 3" Pipe Inside 4" Pipe 4-3/4" to 6" 4-1/8"
7" Square Over 3" Pipe Inside 4" Pipe 5-3/8" to 6-3/4" 4-1/8"



3" x 4" PIPE FITS BASE WITH 3-1/2" SPUDS
Fits Over 3" or Inside 4"  Schedule 40 DWV Fitting
* PB, NB and CP Strainers are 3/16" thick
* Adjustable ( see dimensions C )
3-1/2" IPS Plastic Spuds with 6" Round Strainers
PVC ABS STRAINER
PD620 AD620 6" PB
PD621 AD621 6" PB with Ring
PD622 AD622 6" NB
PD623 AD623 6" NB with Ring



3-1/2" IPS Plastic Spuds with
7" Square Top and 5" Round Strainers
PVC ABS STRAINER
PD624 AD624 5" PB
PD625 AD625 5" NB



DRAIN DIMENSIONS
  A B C D E
6" Round with Ring Over 3" Pipe Inside 4" Pipe 2-1/2" to 3-3/4" 4-1/8" 6-1/2"
6" Round Over 3" Pipe Inside 4" Pipe 2-3/4" to 4" 4-1/8" 6-1/8"
7" Square Over 3" Pipe Inside 4" Pipe 2-1/2" to 3-3/4" 4-1/8" 7"
