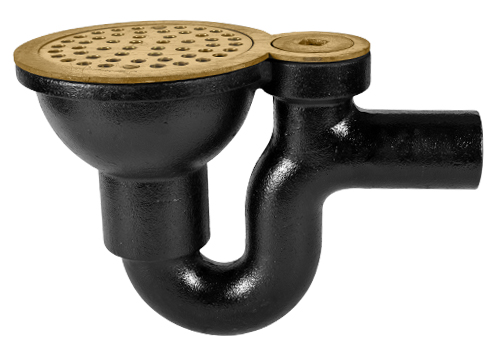

| FLOOR DRAIN WITH P-TRAP |
|
| EXPOSED CLEANOUT - NO HUB |
|
|
|
|
|
|
| ITEM No. |
DESCRIPTION |
SIZE |
COLOR |
| 1320-2 |
Without backwater device |
2" |
Black |
| 1320-2B |
Without backwater device |
2" |
Polished Brass |
| 1320-2C |
Without backwater device |
2" |
Chrome Plated |
| 1320-3 |
Without backwater device |
3" |
Black |
| 1320-2W |
With backwater device |
2" |
Black |
| 1320-2BW |
With backwater device |
2" |
Polished Brass |
| 1320-2CW |
With backwater device |
2" |
Chrome Plated |
| 1320-2SB |
Replacement strainer |
|
Polished Brass |
| 1320-2SC |
Replacement strainer |
|
Chrome Plated |
| 1320-2S |
Replacement strainer |
|
Black |
|
| |
|
| |
|
| |
| FLOOR DRAIN WITH P-TRAP |
|
| CONCEALED CLEANOUT - NO HUB |
|
|
|
|
|
|
| ITEM No. |
DESCRIPTION |
SIZE |
COLOR |
| 1330-2 |
Without backwater device |
2" |
Black |
| 1330-3 |
Without backwater device |
3" |
Black |
| 1330-2W |
With backwater device |
2" |
Black |
|
| |
|
| |
|
| |

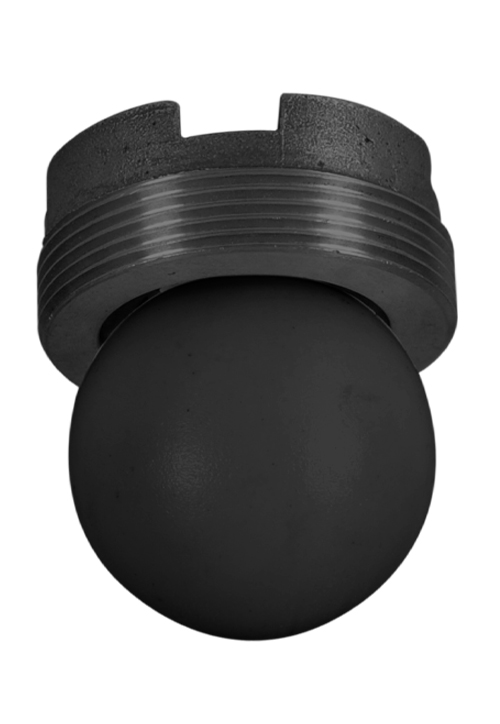

| BACKWATER DEVICE FOR FLOOR DRAIN |
| |
|
|
| ITEM No. |
SIZE |
|
| 1320-2V |
2" |
|
|
| |
|
| |
|
| |
| FULL WATERWAY |
| QUICK FLOOR DRAIN |
| Inside caulk with extra heavy locking strainer. |
|
|
| ITEM No. |
SIZE |
| 2QD |
2" |
| 3QD |
3" |
| 4QD |
4" |
| 6QD |
6" |
| 2QDS |
Strainer |
| 3QDS |
Strainer |
| 4QDS |
Strainer |
|
| |
|
| |
|
| |
| NO HUB QUICK DRAIN |
| Connect to no hub pipe or plastic pipe with |
| a no hub coupling. Spigot outlet. |
|
|
| ITEM No. |
SIZE |
| 2402 |
2" |
| 2403 |
3" |
| 2404 |
4" |
| 2406 |
6" |
|
| |
|
| |
|
| |
| RAIN LEADER CESSPOOL |
| 12" Diameter, 8-3/4" Height |
|
|
| ITEM No. |
SIZE |
| 4200 |
4" Hub inlet x4" spigot outlet |
|
| |
|
| |
|
| |

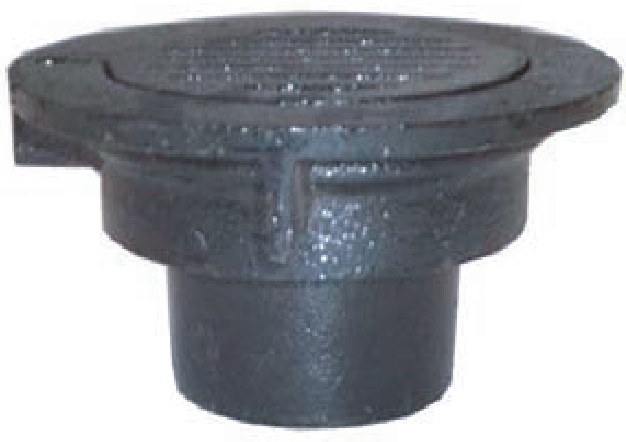

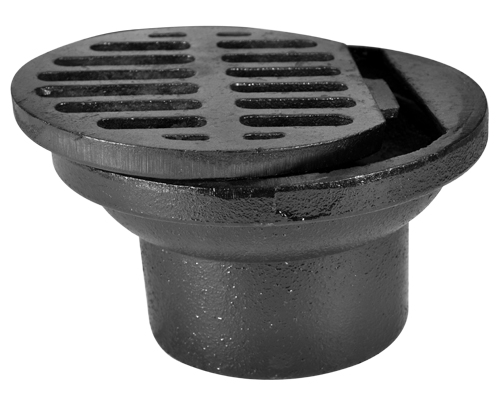

| ROUND FLOOR DRAIN |
| Loose strainer, Heavy body drain to |
| slip in to spigot end of 4" pipe. |
| ITEM No. |
SIZE |
| 3710 |
6-5/8" diam. 5-1/2" height |
|
| |
|
| |
|
| |

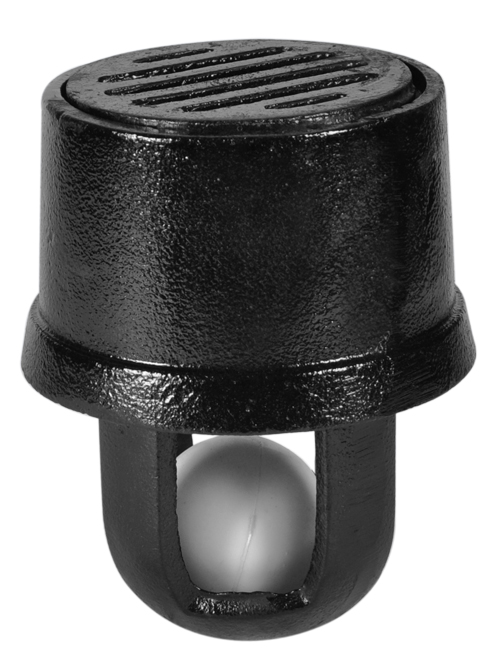

| COMBINATION FLOOR DRAIN |
| AND BACKWATER VALVE |
| Loose Strainer |
|
|
|
|
| ITEM No. |
SIZE |
|
| 1290 |
3" |
|
| 1292 |
4" |
|
|
| |
|
| |
|
| |

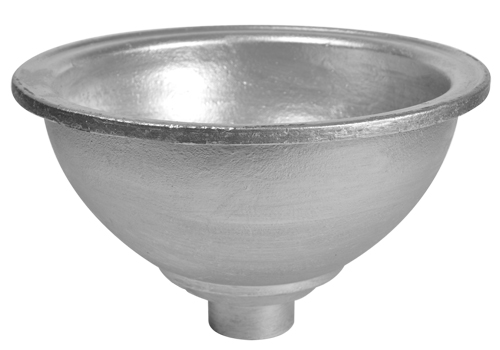

| ROUND SLOP SINK |
|
|
| HYDRANT CESSPOOL |
|
|
| Furnished with a screwed round strainer |
|
| 4-1/2" in diameter, 12" diameter 6" deep |
|
|
|
|
|
| ITEM No. |
OUTLET |
SIZE |
COLOR |
| 3610 |
IPS |
2" |
Black |
| 3611 |
No Hub. |
2" |
Black |
| 3610G |
IPS |
2" |
Galvanized |
| 3611G |
No Hub. |
2" |
Galvanized |
|
| |
|
| |
|
| |

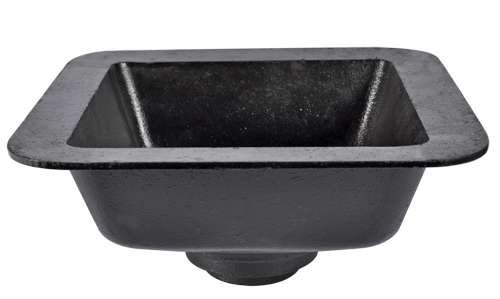

| SQUARE SLOP SINK |
|
|
| HYDRANT CESSPOOL |
|
|
| Furnished with loose round strainer. |
|
|
|
|
|
| ITEM No. |
SIZE |
DIAMETER |
| 801 |
12" x 12" |
5" Deep, 4" Spigot Outlet |
| 802 |
12" x 12" |
5" Deep, 2" Tapped |
| 801S |
7-1/2" x 7-1/2" |
Sqr. Str. W/bell |
|
| |
|
| |
|
| |
| INSIDE CAULK |
|
| SHOWER DRAIN |
|
| 4-1/4" stanless steel strainer cast brass body. |
|
|
|
| ITEM No. |
DESCRIPTION |
SIZE |
| 3830 |
Without gasket |
2" |
|
| |
|
| |
|
| |
| IPS |
|
|
|
| SHOWER DRAIN |
|
|
| IPS Connection. 4-1/4" stainless steel strainer cast brass body. |
|
|
|
|
| ITEM No. |
SIZE |
|
| 3835 |
2" IPS |
|
|
| |
|
| |
|
| |

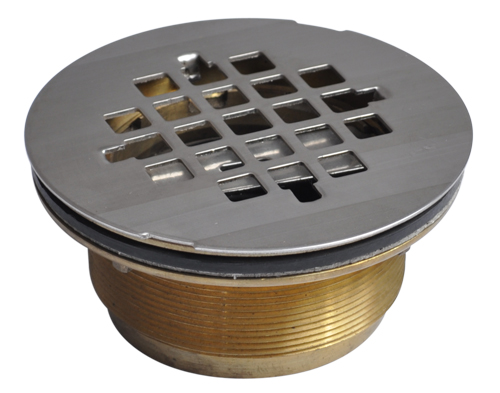

| NO CAULK |
|
|
| SHOWER STALL DRAIN |
|
|
| Designed for prefab, metal, nylon and fiberglass receptors. |
| Snap-in 4-1/4" strainer, cast brass body. Self caulking feature |
| makes installation a matter of minutes. |
|
|
|
|
|
|
| ITEM No. |
DESCRIPTION |
SIZE |
|
| 3825 |
W/Stainless Steel strainer |
2" |
|
| 3825S |
replacement SS strainer |
2" |
|
|
| |
|
| |
|
| |

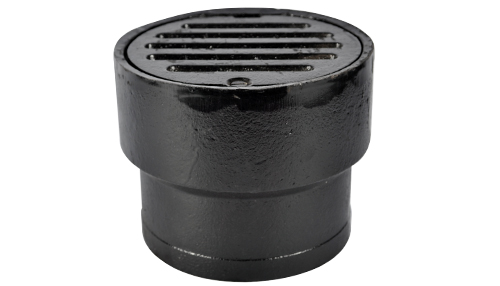

| SHORT PATTERN |
|
| ROUND FLOOR DRAIN |
| 2" IPS hinged strainer. Spigot slips into 4" pipe. |
|
|
|
| ITEM No. |
SIZE |
| 3715 |
6-5/8" diam. 2-3/4" height |
|
| |
|
| |
|
| |
| SHOWER DRAIN WITH BRASS CLAMP RING |
| Cast Iron pan. Screw down brass clamp ring to hold |
| flashing in place. Slots in the clamp ring provide |
|
| positive drainage. Pan is 6-3/4" in diameter. |
|
| Designed for use with lead shower pan lining. |
|
| |
|
|
|
| ITEM No. |
STRAINER |
OUTLET |
|
| 1440 |
Stainless Steel |
2" IPS |
|
| 1441 |
Stainless Steel |
2" Inside Caulk |
|
| 1442 |
Stainless Steel |
2" No Hub |
|
| 1440H |
Chrome w/brass |
2" IPS |
|
| 1441H |
Chrome w/brass |
2" Inside Caulk |
|
| 1442H |
Chrome w/brass |
2" No Hub |
|
| 1440B |
Polished Brass |
2" IPS |
|
| 1441B |
Polished Brass |
2" Inside Caulk |
|
| 1442B |
Polished Brass |
2" No Hub |
|
|
| |
|
| |
|
| |

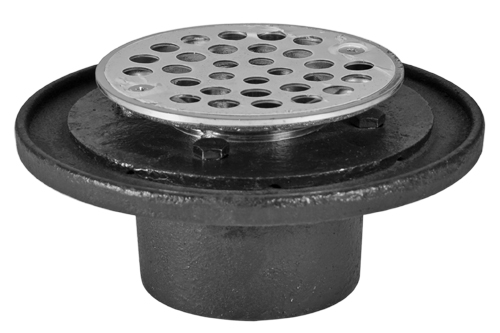

| COMPETITIVE SHOWER OR FLOOR DRAIN |
| Cast Iron body. 6-1/2" dia. Pan.Cast Iron bolt down |
|
| clamp ring to use with nonlead pan liner. |
|
| Clamp ring has 8 seepage grooves on the underside. |
|
|
|
|
| ITEM No. |
STRAINER |
OUTLET |
|
| 1445 |
Stainless Steel |
2" Inside Caulk |
|
| 1446 |
Stainless Steel |
2" No Hub |
|
| 1447 |
Stainless Steel |
2" IPS |
|
| 1445H |
Chrome w/brass |
2" Inside Caulk |
|
| 1446H |
Chrome w/brass |
2" No Hub |
|
| 1447H |
Chrome w/brass |
2" IPS |
|
| 1447SQ |
Chrome / Square Grate |
2" IPS |
|
| 1445B |
Polished Brass |
2" Inside Caulk |
|
| 1446B |
Polished Brass |
2" No Hub |
|
| 1447B |
Polished Brass |
2" IPS |
|
|
| |
|
| |
|
| |

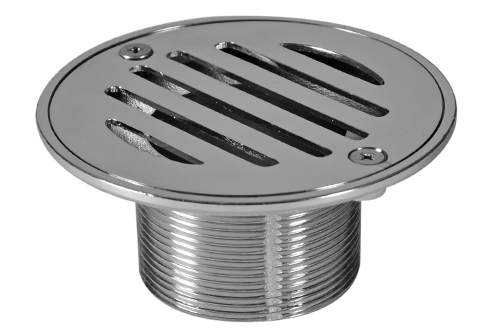

| MALE SHANK |
|
|
| SHOWER STRAINERS |
|
|
| For use in iron body shower drains. "H" series have |
| cast brass chrome plated grids. Others have |
|
| perforated stainless grids. |
|
|
|
|
|
|
| ITEM No. |
SHANK |
SIZE |
TOP DIA. |
| 1801 |
1-3/4" |
2" IPS |
4-1/2" |
| 1801H |
1-3/4" |
2" IPS |
4-1/2" |
| 1801B |
1-3/4" |
2" IPS |
4-1/2" |
| 1801LS |
4-1/4" |
2" IPS |
4-1/2" |
|
| |
|
| |
|
| |

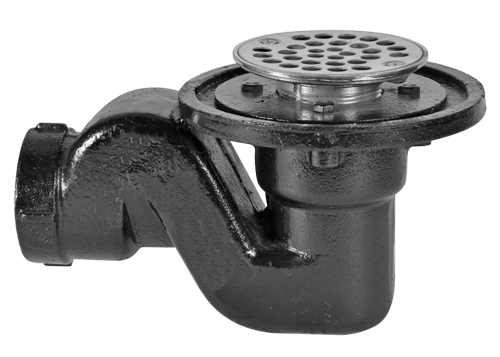

| CAST IRON SHOWER DRAIN WITH TRAP |
| Cast Iron body. 6-1/2" dia. Pan. Bolt down clamp ring to |
|
|
|
|
|
| use with non-lead pan liner. Clamp ring has 8 seepage |
|
| grooves on the underside. |
|
|
|
|
|
|
|
|
| ITEM No. |
DESCRIPTION |
SIZE |
|
| 1448 |
Stainless Steel |
2" IPS |
|
| 1448H |
Chrome Plated |
2" IPS |
|
| 1448B |
Polished Brass |
2" IPS |
|
|
| |
|
| |
|
| |

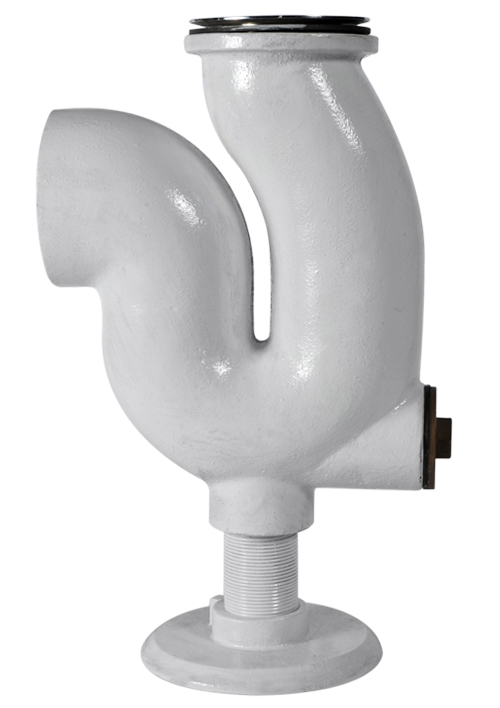

| ADJUSTABLE CAST IRON TRAP |
| With Stainless Steel Strainer. |
|
|
|
|
|
| ITEM No. |
SIZE |
|
| 3620 |
2" IPS |
|
| 3621 |
3" IPS |
|
| 3620-S |
Strainer |
|
|
| |
|
| |
