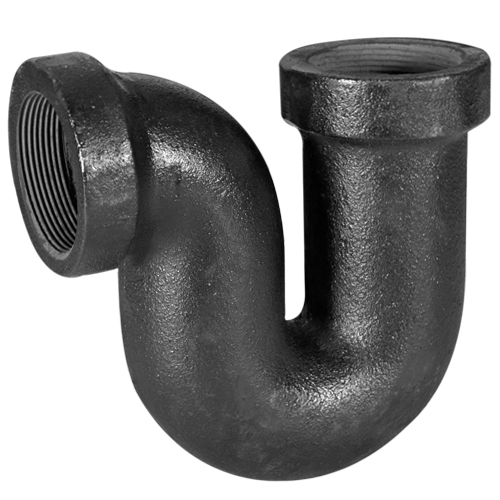

| LOW INLET P-TRAP WITHOUT CLEANOUT |
|
|
|
|
| ITEM No. |
PIPE SIZE |
FINISH |
| D428-1 |
1-1/2" |
Black |
| D428-1G |
1-1/2" |
Galvanized |
| D428-2 |
2" |
Black |
| D428-2G |
2" |
Galvanized |
|
| |
|
| |
|
| |

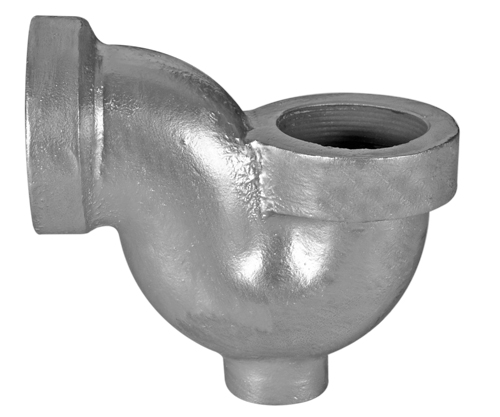

| LOW INLET P-TRAP WITH CLEANOUT OPENING |
|
|
|
| ITEM No. |
SIZE |
FINISH |
| D429-1 |
1-1/2" |
Black |
| D429-1G |
1-1/2" |
Galvanized |
| D429-2 |
2" |
Black |
| D429-2G |
2" |
Galvanized |
|
| |
|
| |
|
| |

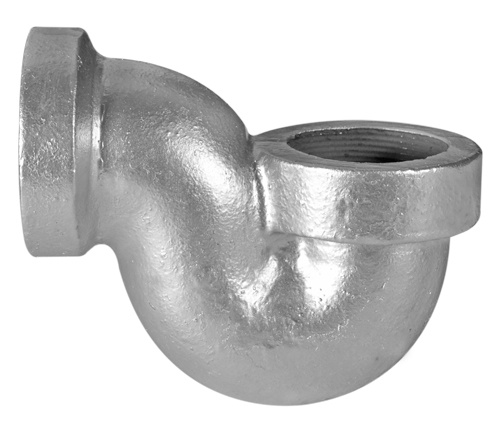

| HIGH INLET P-TRAP WITHOUT CLEANOUT |
|
|
|
|
| ITEM No. |
PIPE SIZE |
FINISH |
| D430-1 |
1-1/2" |
Black |
| D430-1G |
1-1/2" |
Galvanized |
| D430-2 |
2" |
Black |
| D430-2G |
2" |
Galvanized |
|
| |
|
| |
|
| |
| HIGH INLET P-TRAP |
|
| WITH CLEANOUT OPENING |
|
|
|
|
| ITEM No. |
PIPE SIZE |
FINISH |
| D431-1 |
1-1/2" |
Black |
| D431-1G |
1-1/2" |
Galvanized |
| D431-2 |
2" |
Black |
| D431-2G |
2" |
Galvanized |
|
| |
|
| |
|
| |
| DOUBLE TY DRAINAGE FITTING |
|
|
|
| ITEM No. |
DESCRIPTION |
| 745 |
2" x 2" Double TY |
|
| |
|
| |
|
| |

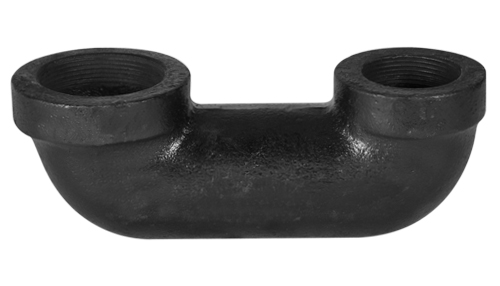

| RETURN BENDS |
|
|
|
|
| ITEM No. |
DESCRIPTION |
| 747-1 |
2" x 1-1/2" Long Pattern |
| 747-2 |
2" x 2" Long Pattern |
| 746-1 |
2" x 1-1/2" Short Pattern |
| 746-2 |
2" x 2" Short Pattern |
|
| |
|
| |
|
| |

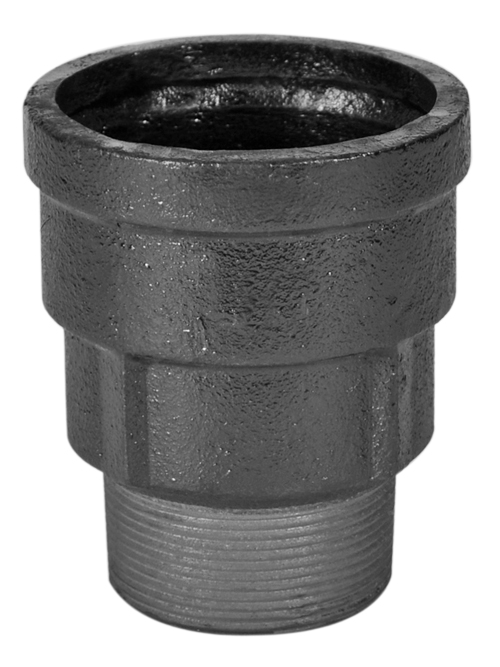

| JIFFY OR HUB DRAINAGE FITTING WITH MALE COUPLING |
|
|
|
| ITEM No. |
SIZE |
FINISH |
| 720 |
1-1/2" x 1-1/2" |
Black |
| 720G |
1-1/2" x 1-1/2" |
Galvanized |
| 722 |
2" x 2" |
Black |
| 722G |
2" x 2" |
Galvanized |
|
| |
|
| |
|
| |

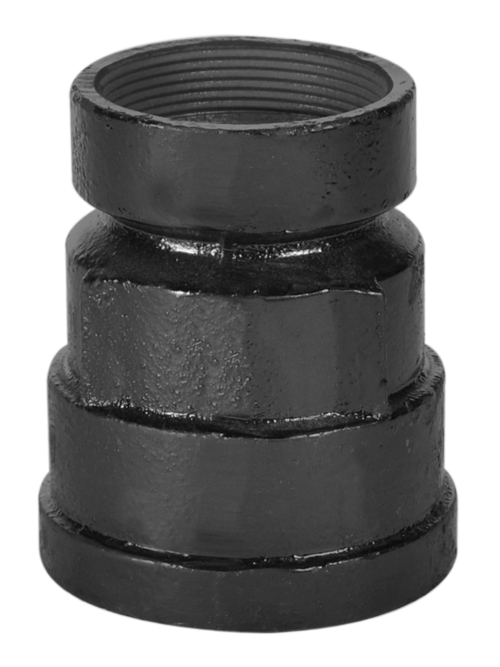

| JIFFY OR HUB DRAINAGE FITTING WITH FEMALE COUPLING |
|
|
|
| ITEM No. |
PIPE SIZE |
FINISH |
| 730 |
1-1/2" x 1-1/2" |
Black |
| 730G |
1-1/2" x 1-1/2" |
Galvanized |
| 731 |
2" x 2" |
Black |
| 731G |
2" x 2" |
Galvanized |
| 733 |
3" x 3" |
Black |
| 733G |
3" x 3" |
Galvanized |
| 734 |
4" x 4" |
Black |
| 734G |
4" x 4" |
Galvanized |
| 735 |
6" x 6" |
Black |
|
| |
|
| |
|
| |

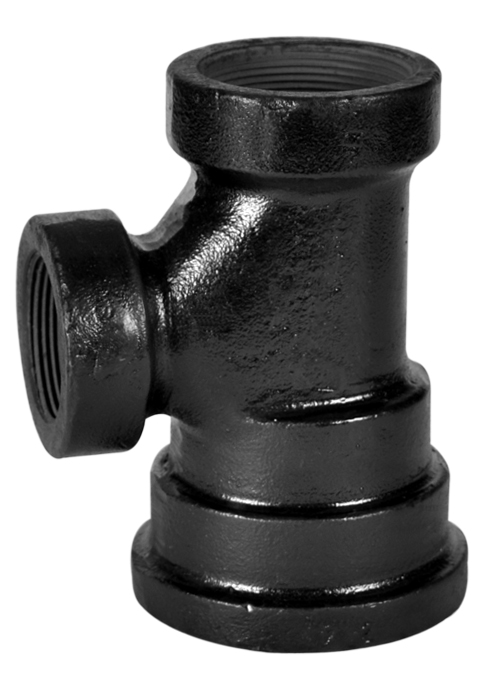

| JIFFY OR HUB DRAINAGE FITTING |
| WITH 90o SHORT TY |
|
|
|
|
| ITEM No. |
SIZE |
FINISH |
| 741 |
1-1/2" x 1-1/2" |
Black |
| 741G |
1-1/2" x 1-1/2" |
Galvanized |
| 742 |
2" x 1-1/2" |
Black |
| 742G |
2" x 1-1/2" |
Galvanized |
| 743 |
2" x 2" |
Black |
| 743G |
2" x 2" |
Galvanized |
|
| |
|
| |
|
| |
| ANTI-SIPHON P-TRAP |
|
|
|
|
| ITEM No. |
PIPE SIZE |
FINISH |
| D432-1 |
1-1/2" |
Aluminum |
|
| |
|
| |
